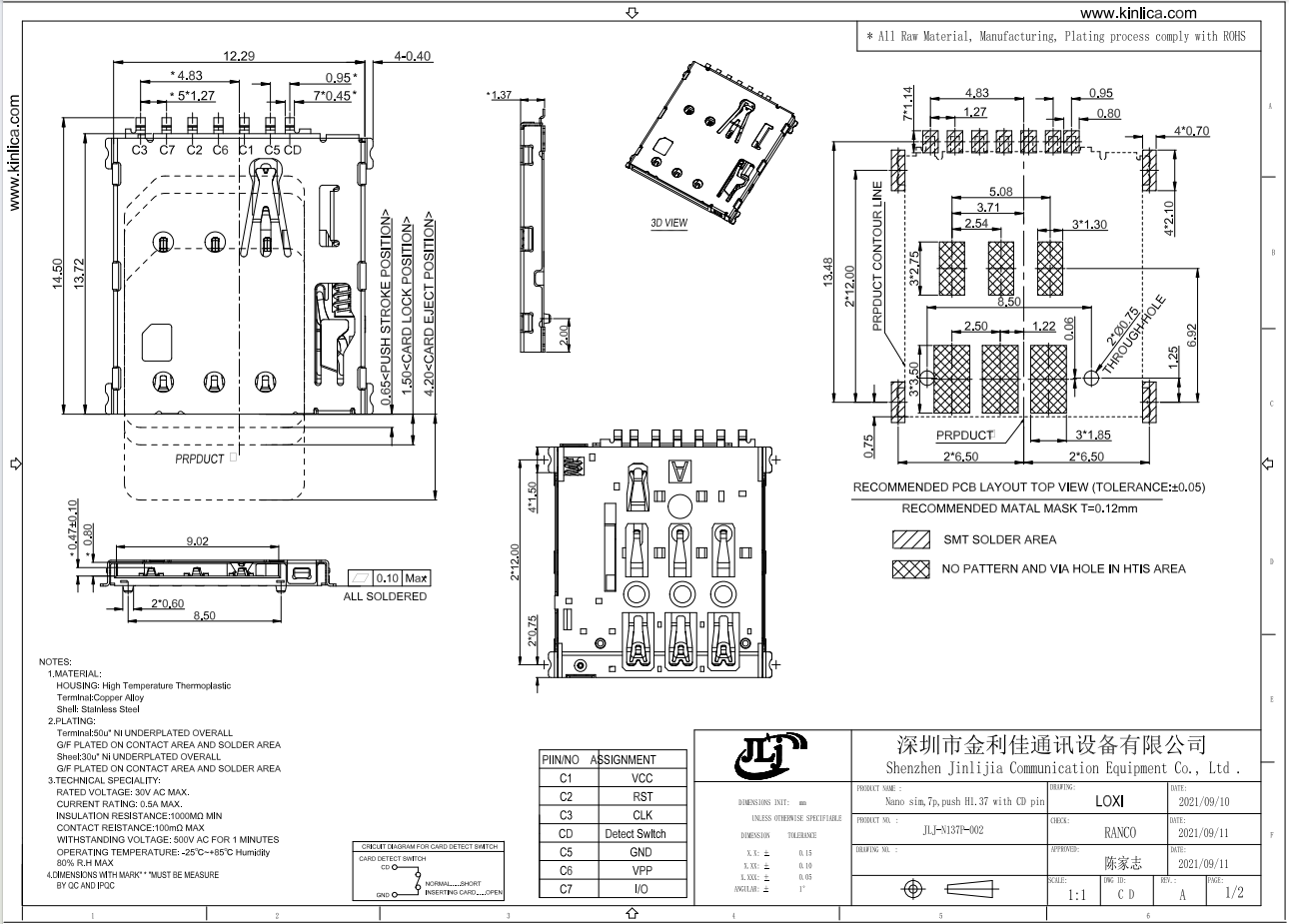

JLJ-N137P-002

nano sim 6+1p has CD terminal H1.37

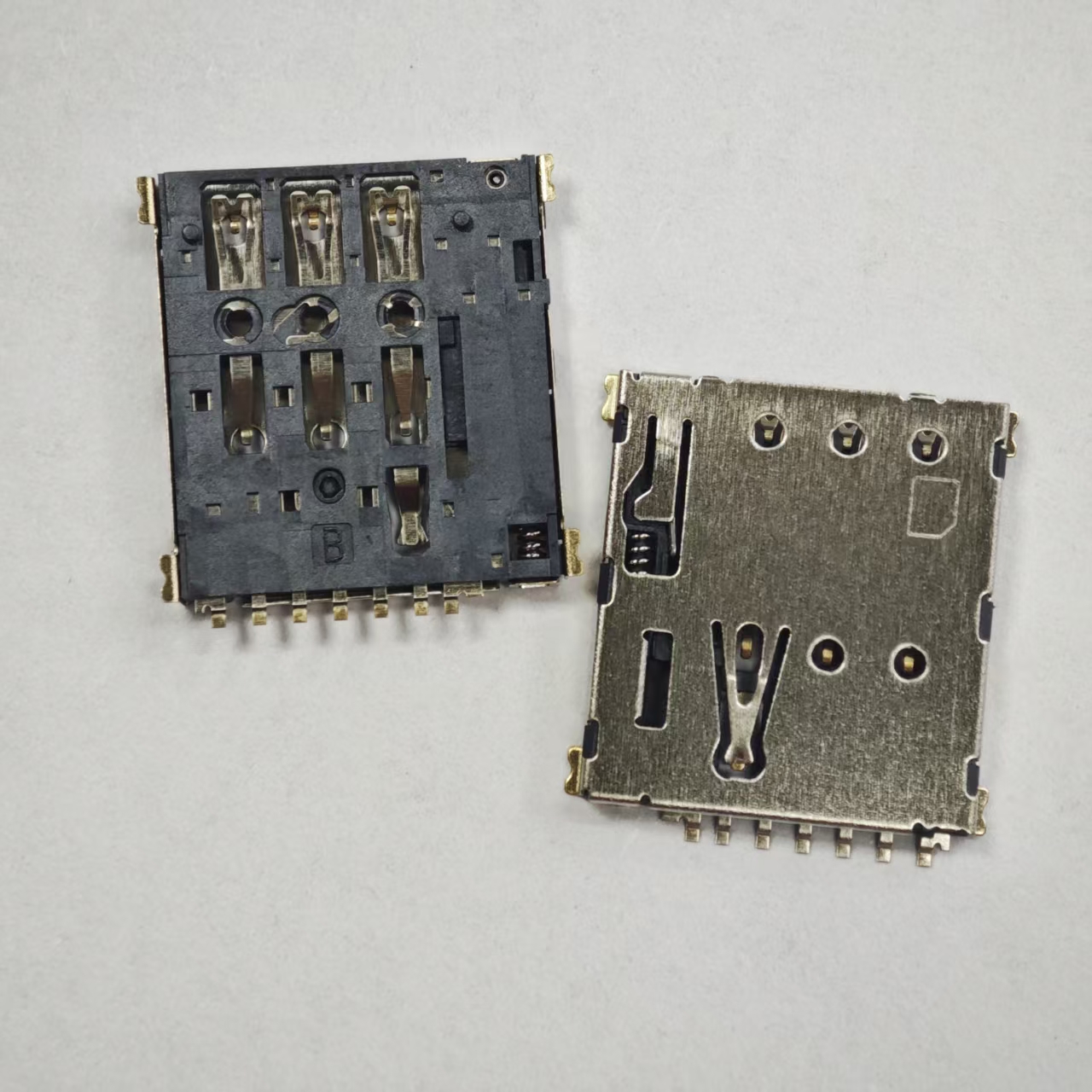

Product name:Nano sim card connector push push type With CD pin 6+1P H1.37 Part Number: JLJ-N137P-002 Specification:Plastic: black high temperature UL94V-0; terminal: copper alloy; shell: stainless steel

echnical parameters:
1. Rated current: 1.0A AC/DC
2. Rated voltage: 50V AC/DC
3. Operating temperature: -20°C ~ +60°C
4. Storage temperature: -30°C ~ +70°C
5. Contact Impedance: 100m ohms max.
6. Withstand voltage: 500V AC / 1 minute
7. Insulation resistance: 1000M ohms min./500VDC
8. Durability: 5000 times
9. Product temperature resistance: 260±5°C 10S
10. Flatness: 0.10mm MAX.
11. RoHS compliant
12. Stable and superior performance
