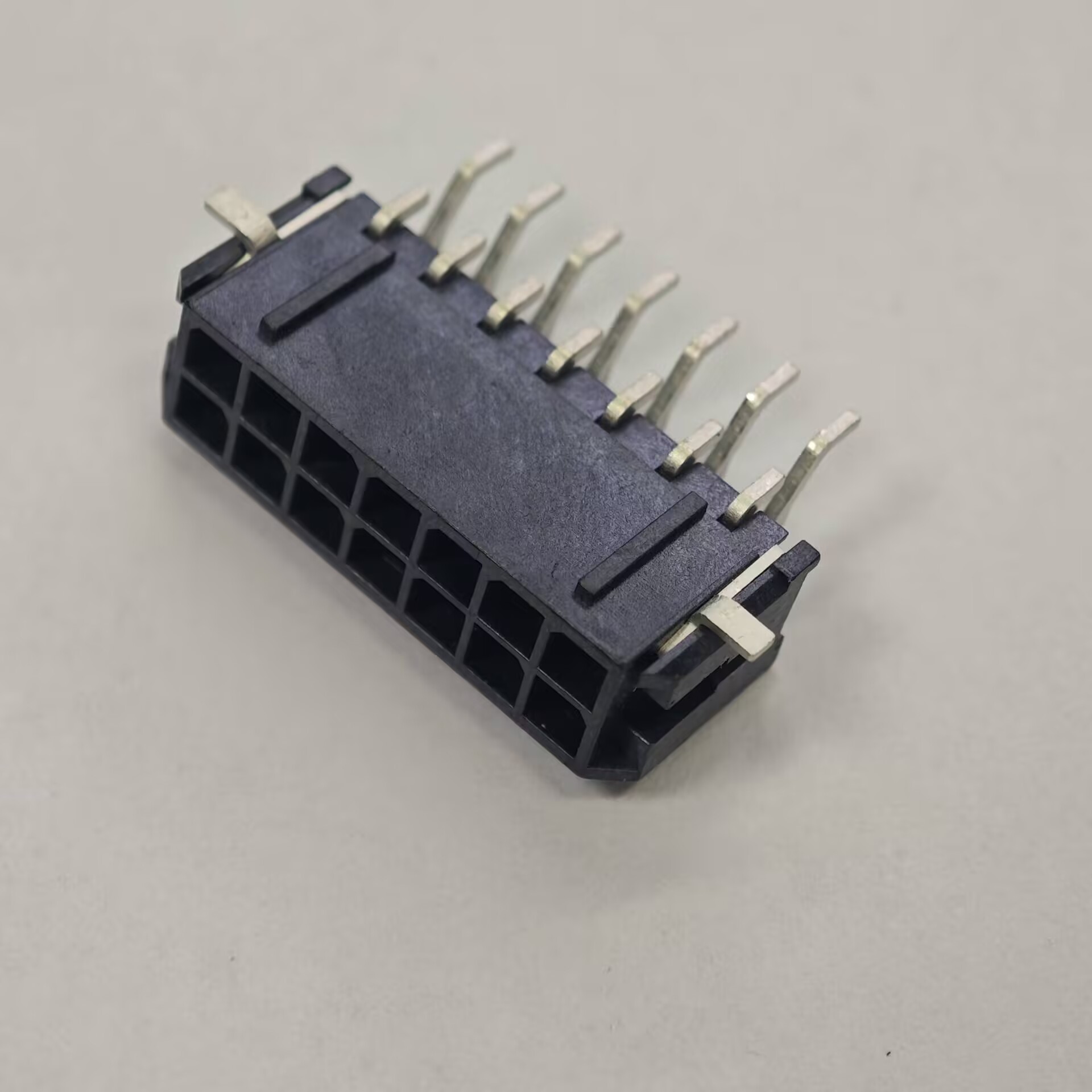

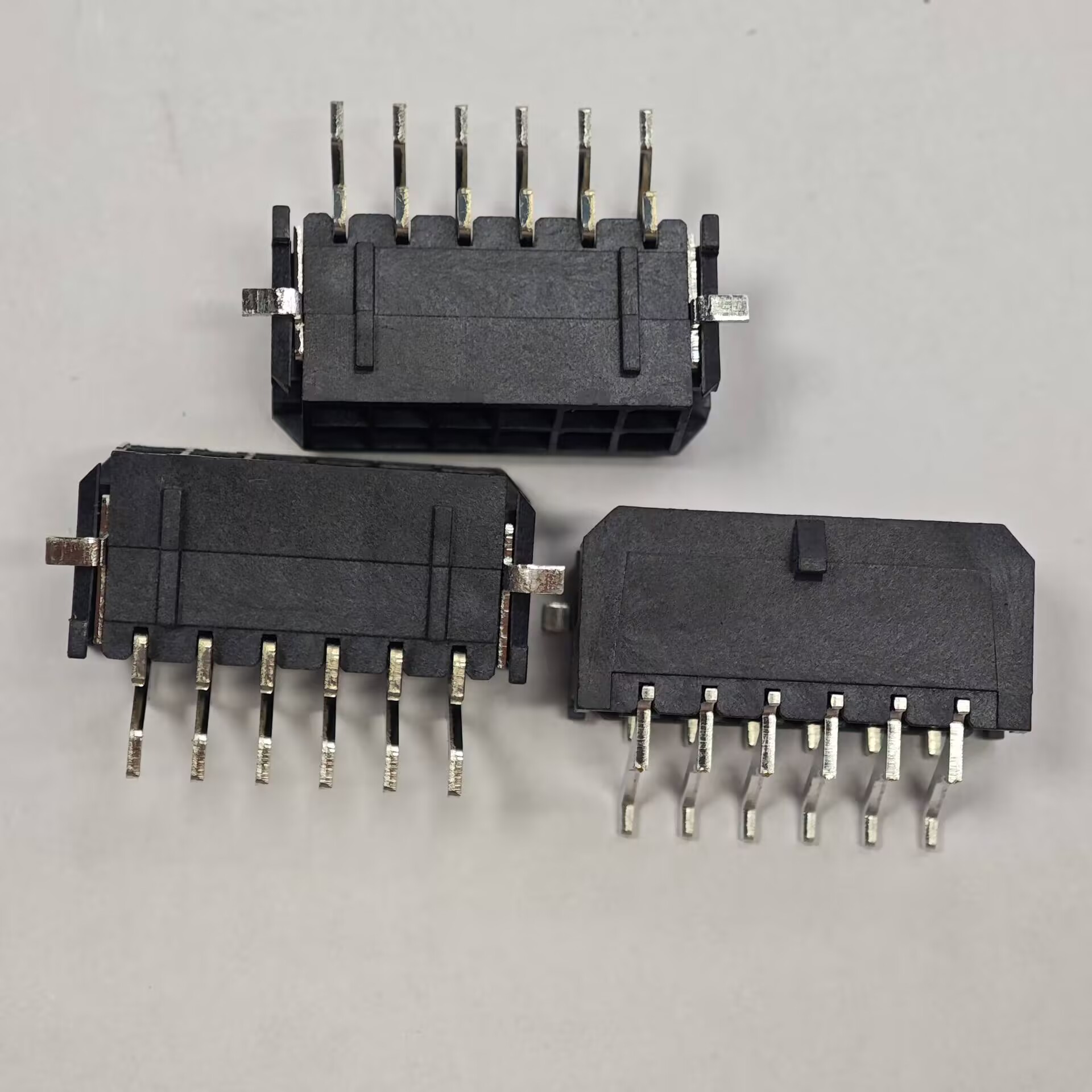

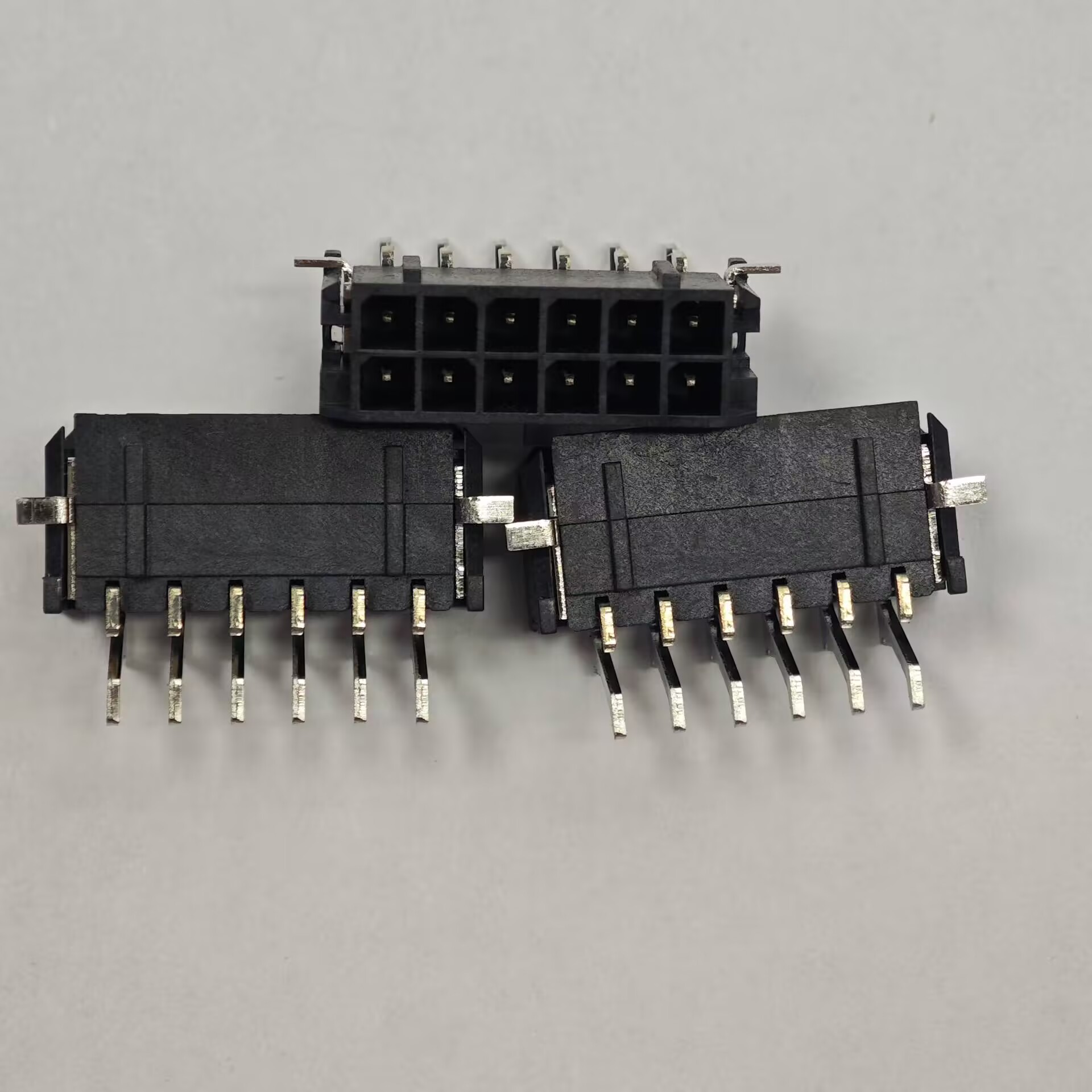

JLJ-WF3.0-2xNAWT

Electrical Characteristics

1‑1. Rated Current: 3A AC DC

1‑2. Contact Resistance: ≤20mΩ

1‑3. Insulation Resistance: ≥1000MΩ

1‑4. Withstand Voltage: 550V AC/Minute

 Physical Characteristics

2‑1. Operating Temperature: ‑55℃～105℃

2‑2. Soldering Temperature: +260℃, 8s max

 Materials

3‑1. Housing: LCP (Black), UL94V‑0

3‑2. Terminal: Brass / Gold plated
