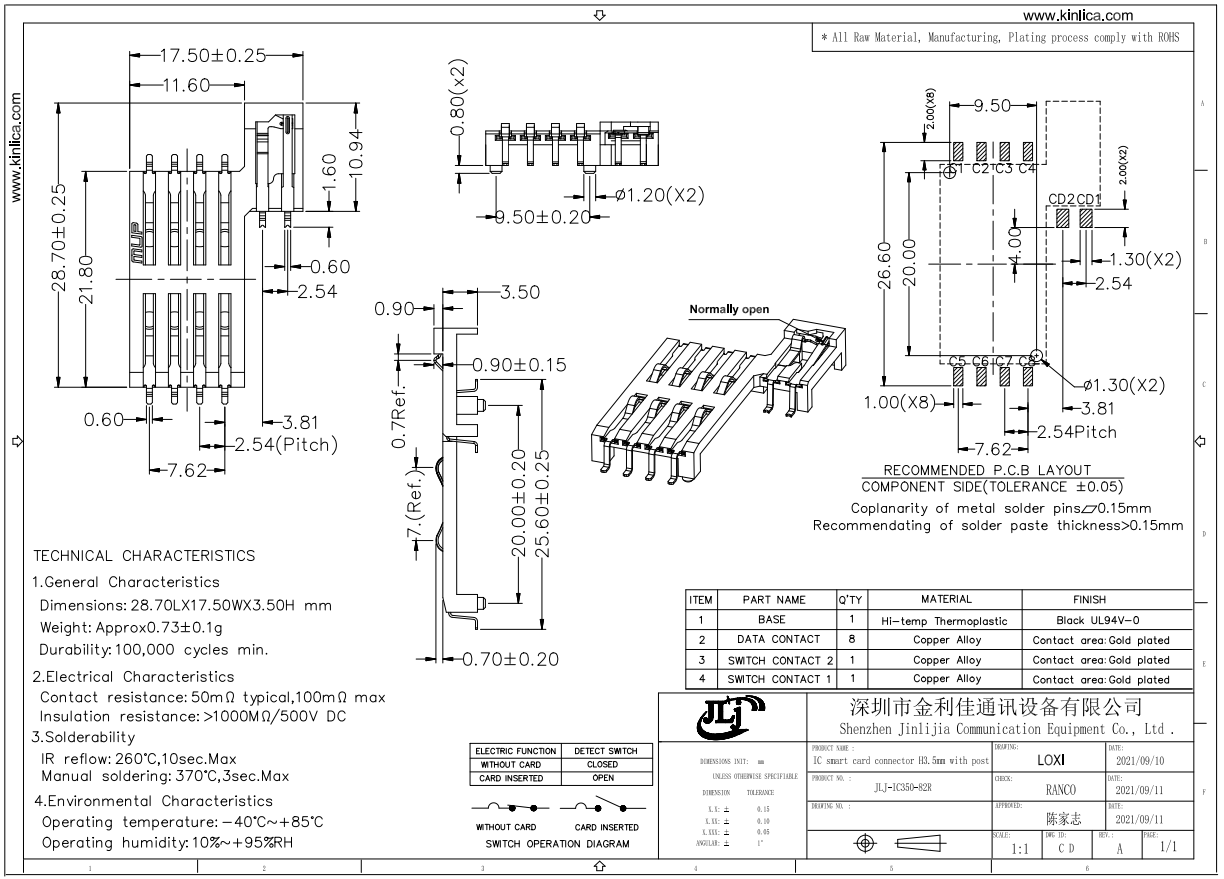

IC Smart card conn. H3.5 with posh
Product name: IC Smart card connector 8+2p 3.5H with posh,Right-side CD Switch. Part Number:JLJ-IC350-82r Specification:Plastic: black high temperature UL94V-0; terminal: copper alloy; shell: stainless steel
TECHNICAL CHARACTERISTICS
1.General Characteristics
Dimensions:28.70LX17.50WX3.50H mm
Weight: Approx0.73±0.1g
Durability:100,000 cycles min.
2.Electrical Characteristics
Contact resistance:50mΩ typical,100mΩ max
Insulation resistance:>1000MΩ/500V DC
3.Solderability
IR reflow:260℃,10sec.Max
Manual soldering:370℃,3sec.Max
4.Environmental Characteristics
Operating temperature: −40℃~+85℃
Operating humidity:10%~+95%RH
