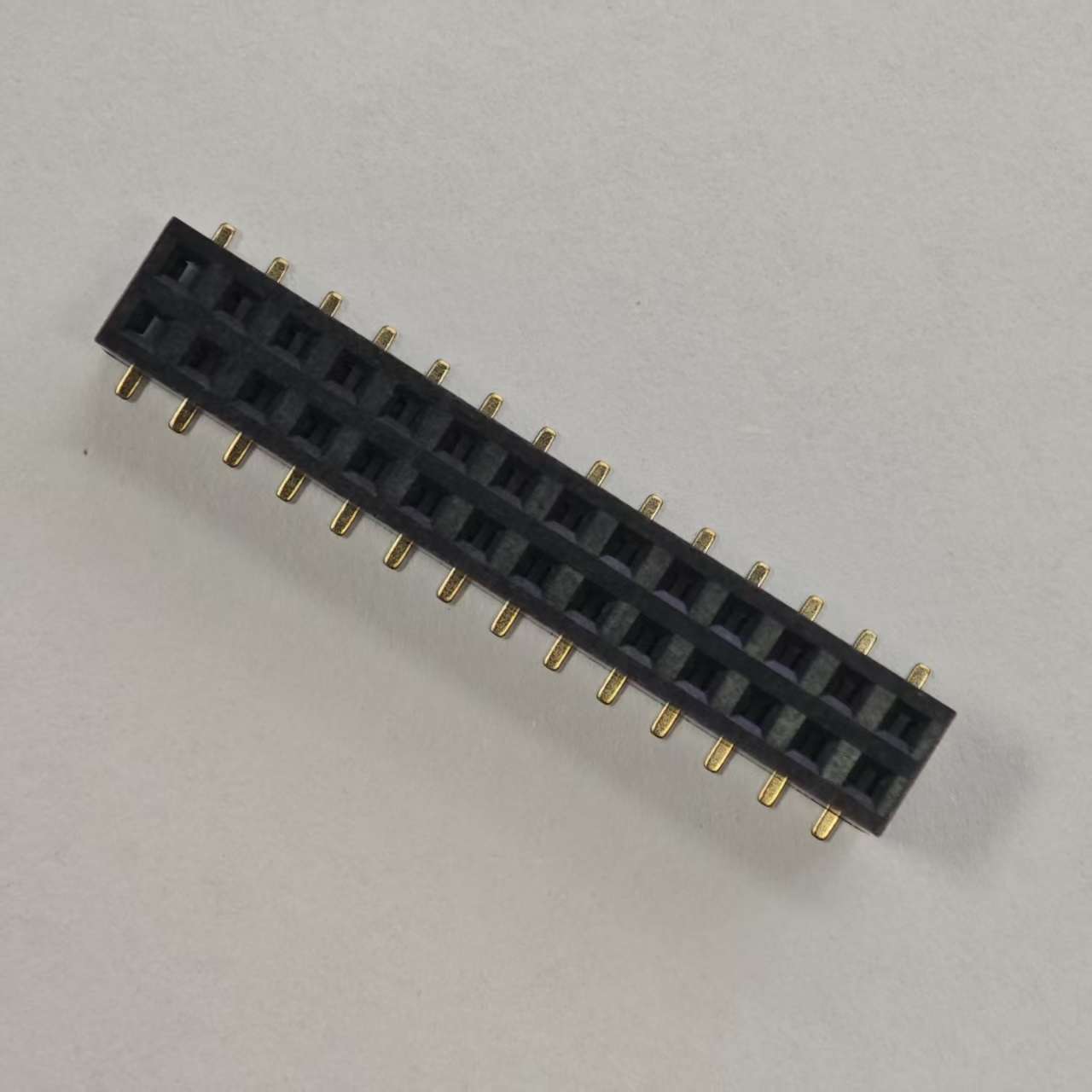

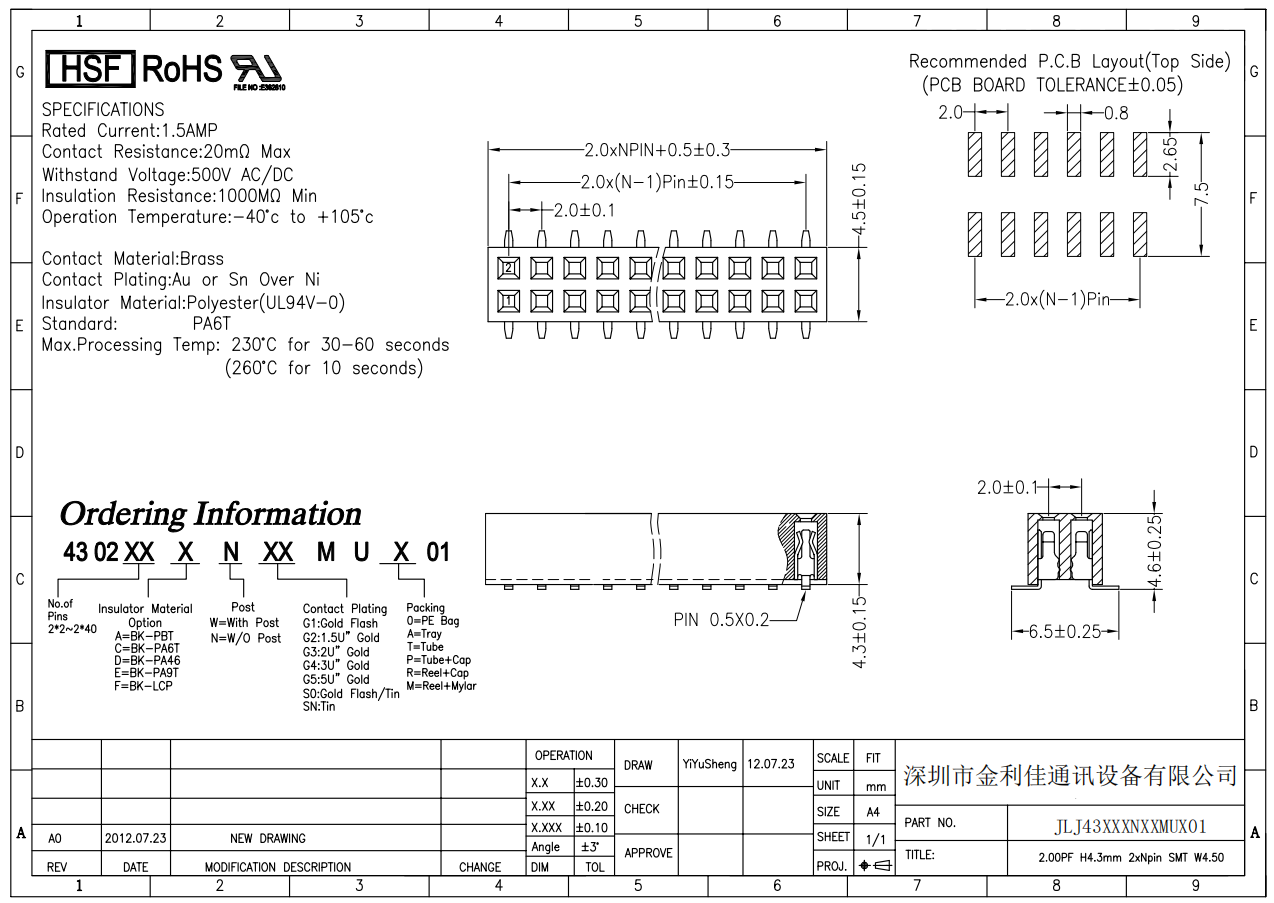

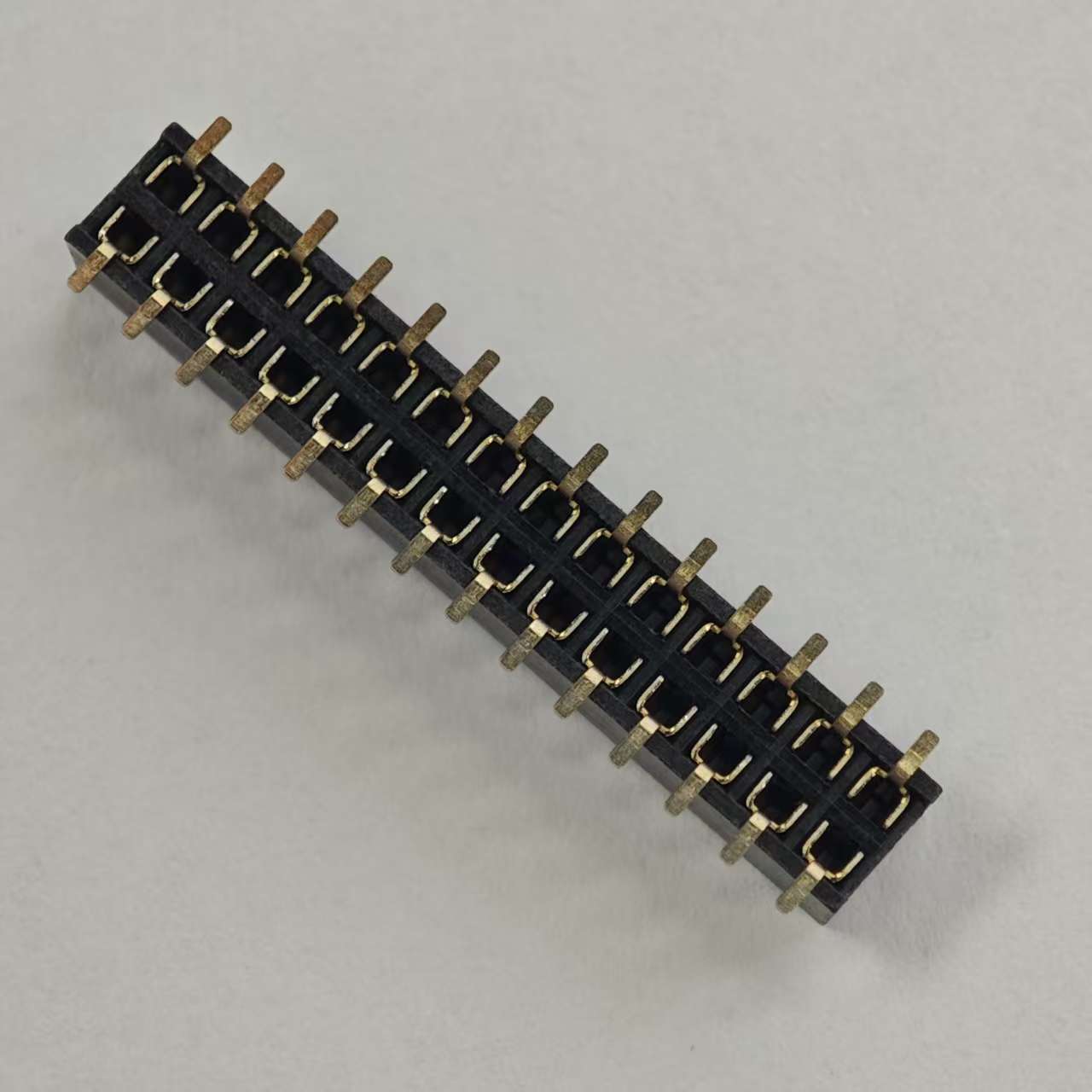

180° SMT 28P/W4.5/U端/4.6/PA6T
| Housing/塑胶 | Contact/端子 | Poles/Pin数 | Packing/包装 | Remark |
| PA6T/LCP UL94V-O | Brass Au or Sn Over Ni | 2P-40P | Tape&Reel | Plastic height can be customized |
Specifications
• Rating Current: 2 AMP.
• Voltage Rating: 250V AC/DC
• Contact Resistance: 20 mΩ MAX.
• Insulating Resistance: 1000 MΩ MIN.
• Withstanding Voltage: AC 500V/Minute.
• Temperature Range: -40℃ to +125℃
