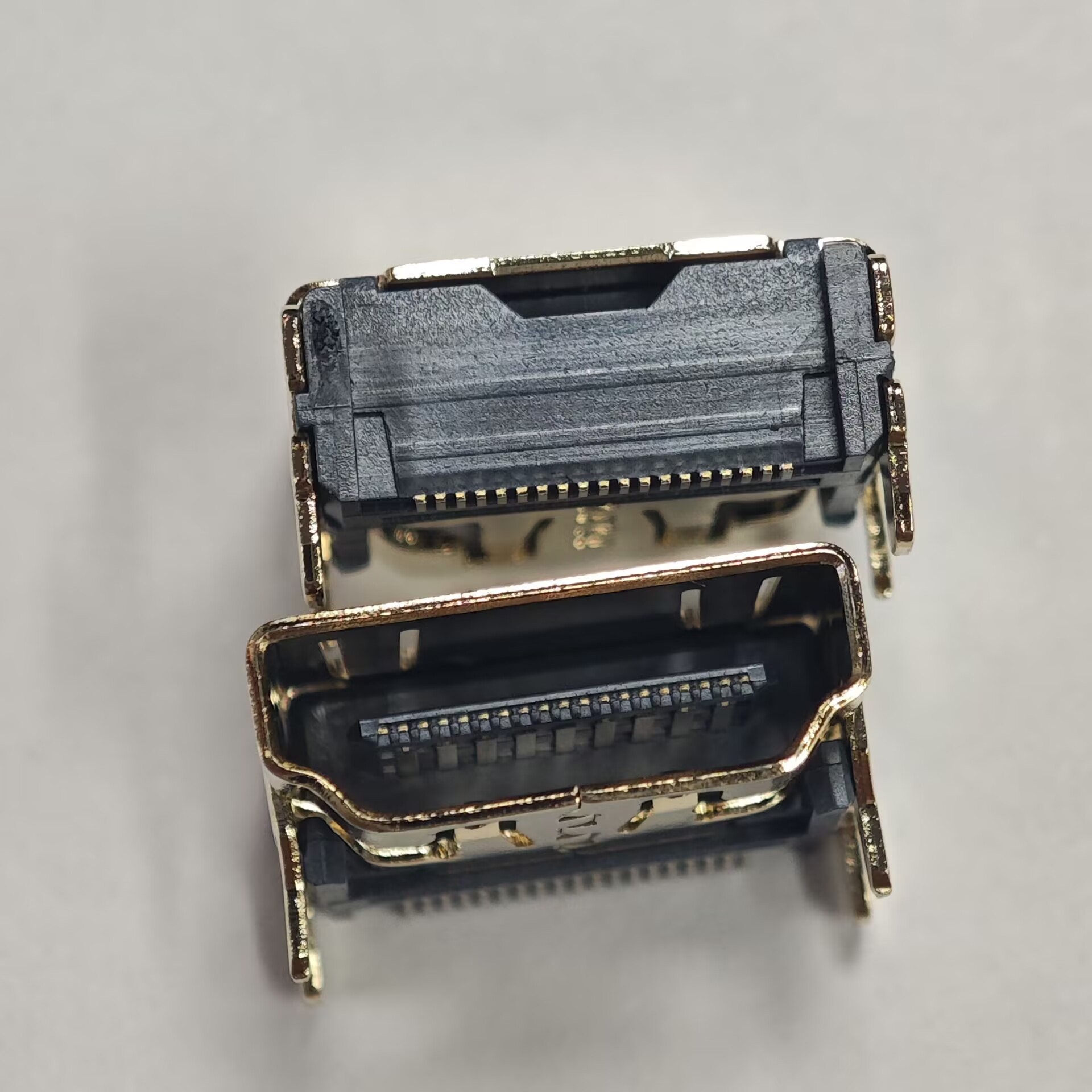

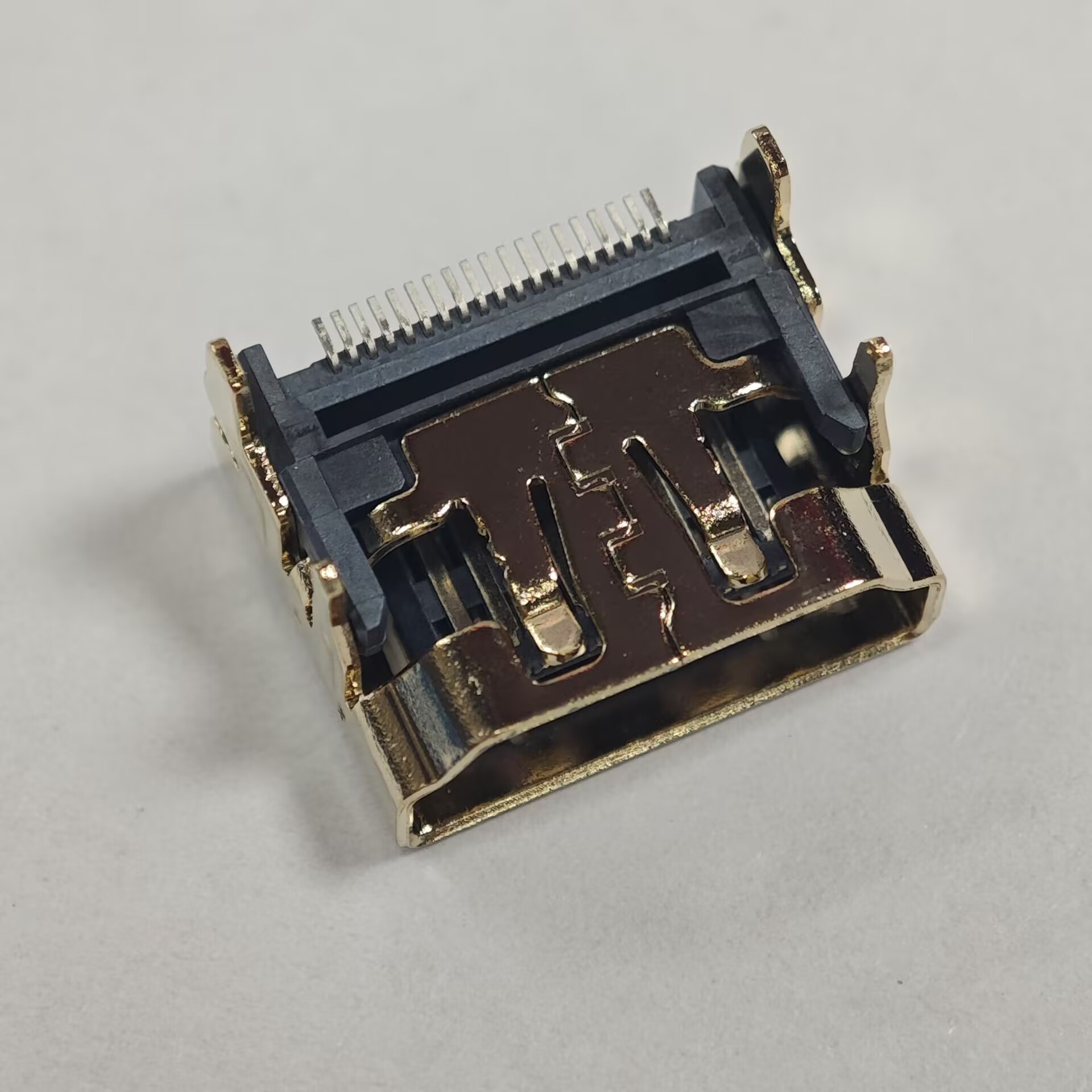

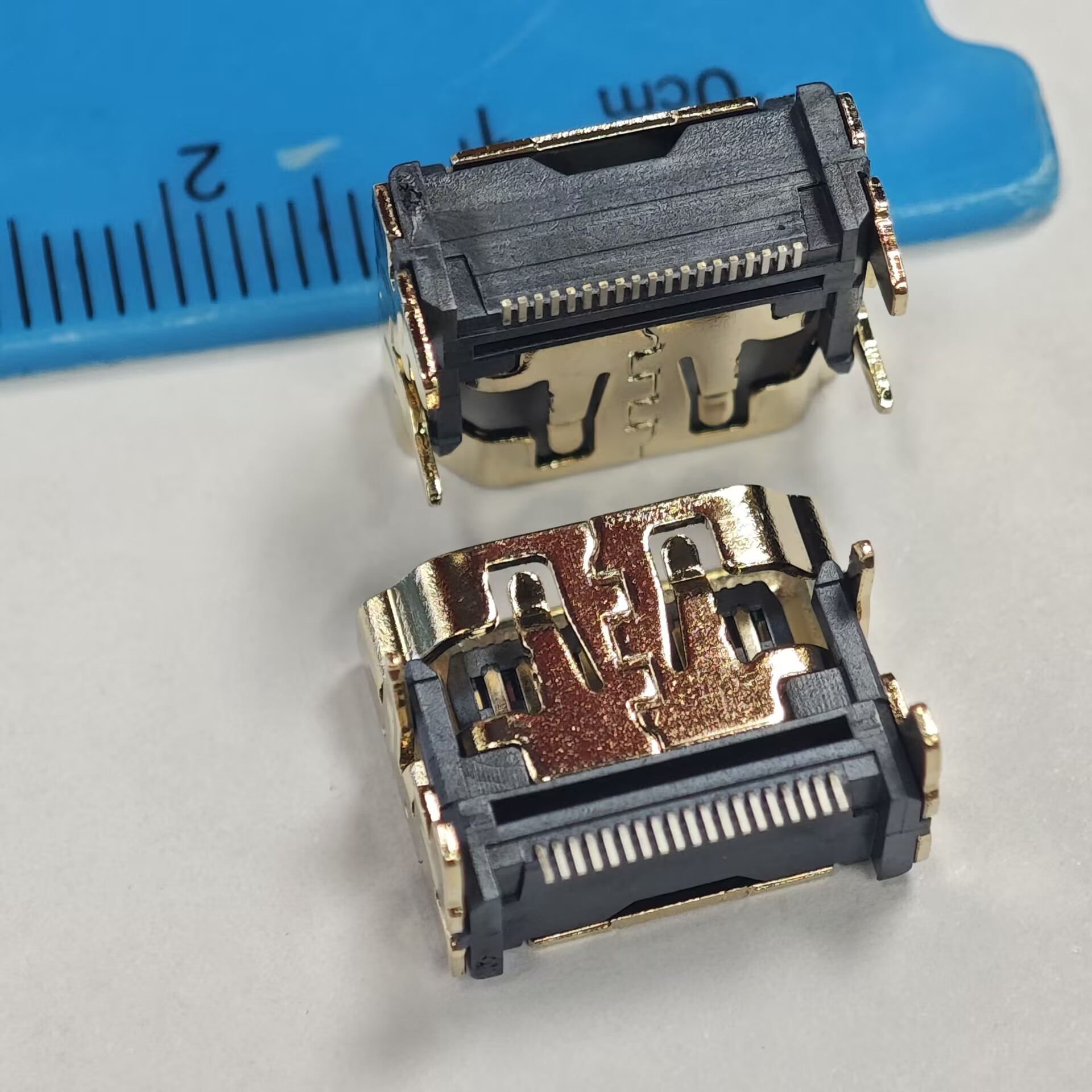

JLJ-HDMIS-4D

HDMI Type A Female Right Angle SMT Connector, 19Pin Gold Plated

1.Material:

InsertMolding:LCP UL 94V-0 Black

Contact:Copper alloy,T=0.20mm

Shell:C2680,T=0.40mm

2.Electrical

1.1.Rated Voltage:40V AC/DC maximum

1.2.Rated Current:0.3A max.

1.3.Dielectric strength:150V AC/1 minute

1.4.Insulation Resistance:150V DC 10MΩ min.

1.5.Contact Resistance:30mΩ Max.

3.Mechanical

2.1.Insertion Force Max:4.0kgf max.

2.2.Removal Force Min:1.0kgf min. , 4.0kgf max.

2.3.Durability: 3000 cycles at 100±50 cycles per hour

4.Plating

4.1.Terminal:Contact area:1u" gold plate over 50u" NI min.

Solder area:100u" pure TIN plate over 50u" NI min.

4.2.Shell: Ni:100u"min.

5.Ambient Temperature:−55°C To +85°C
