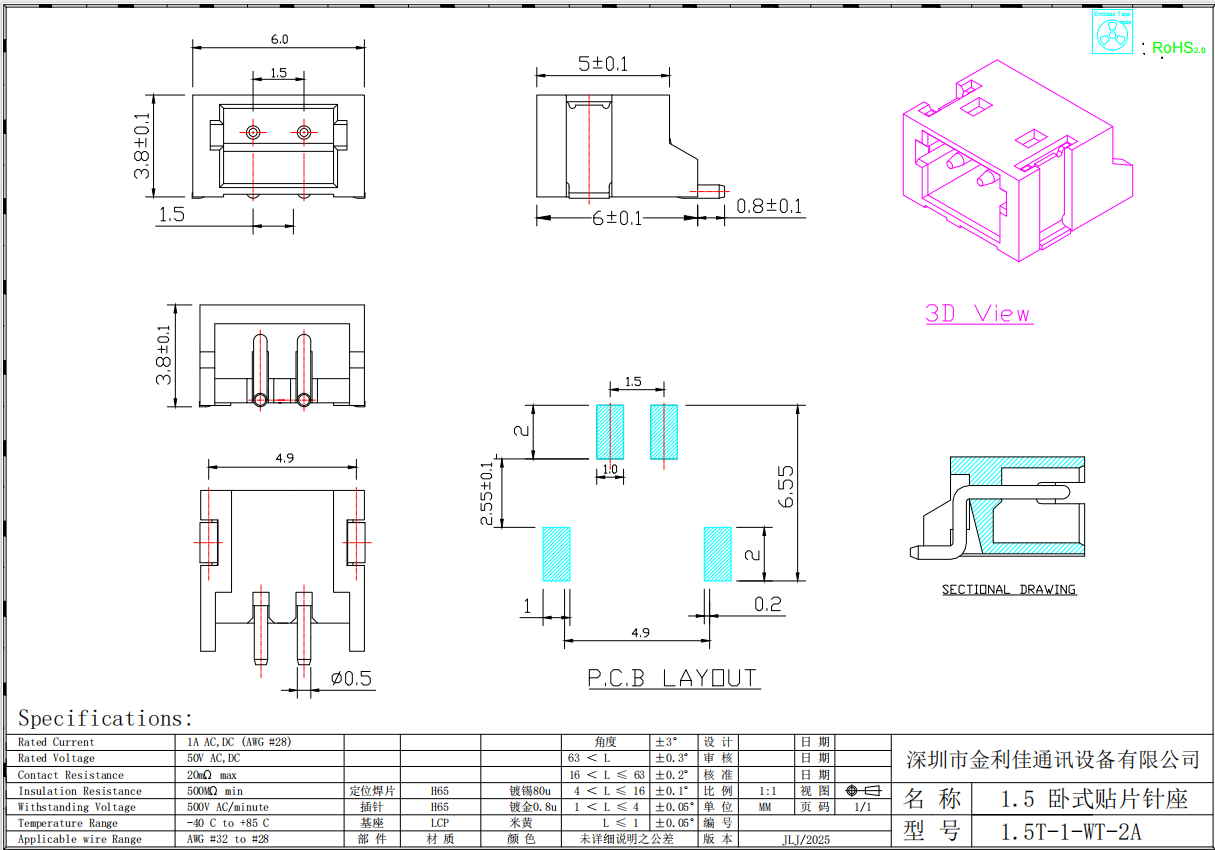

1.5T-1-WT-2A

Horizontal side‑mount 1.5mm Pitch 2p

Plating requirement: The contact pins shall be gold‑plated at 0.8μm (80μinch), and the fixing shrapnels shall be tin‑plated. Housing material: Beige LCP with high temperature resistance for SMT reflow soldering. Specifications: Rated current 1A, wide temperature range of -40℃ to +85℃, applicable to industrial control and precision battery modules.
