JLJ-NSIM118-123

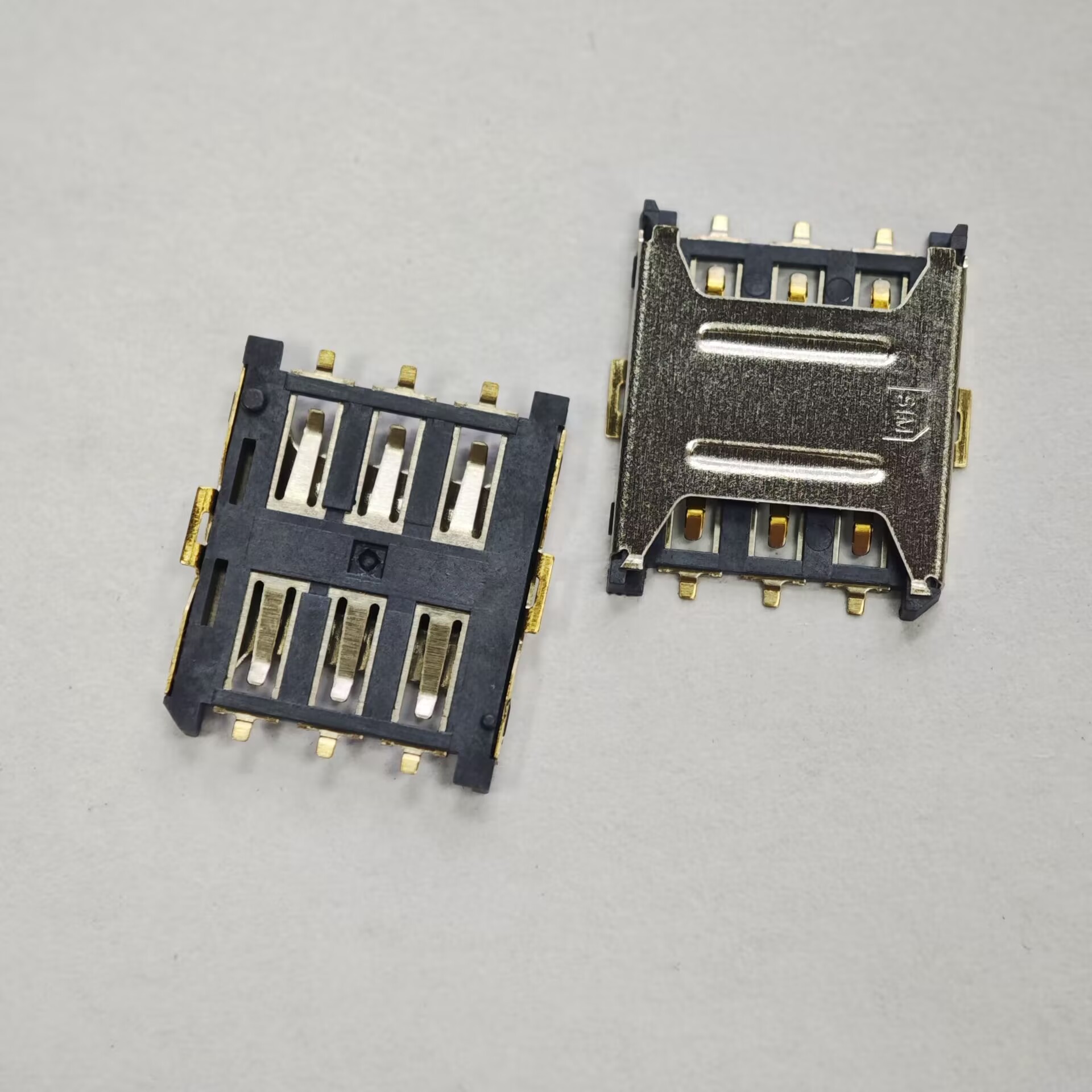

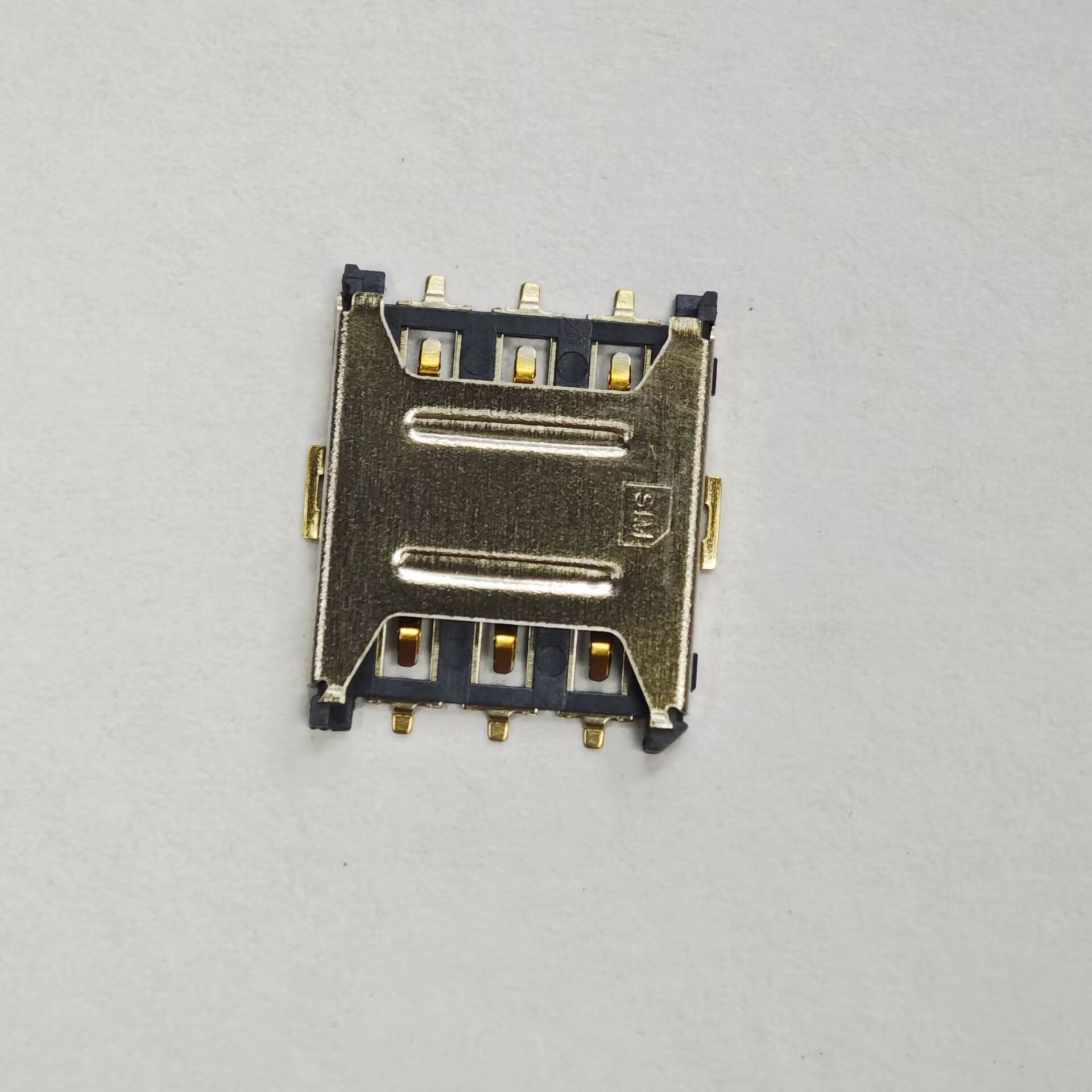

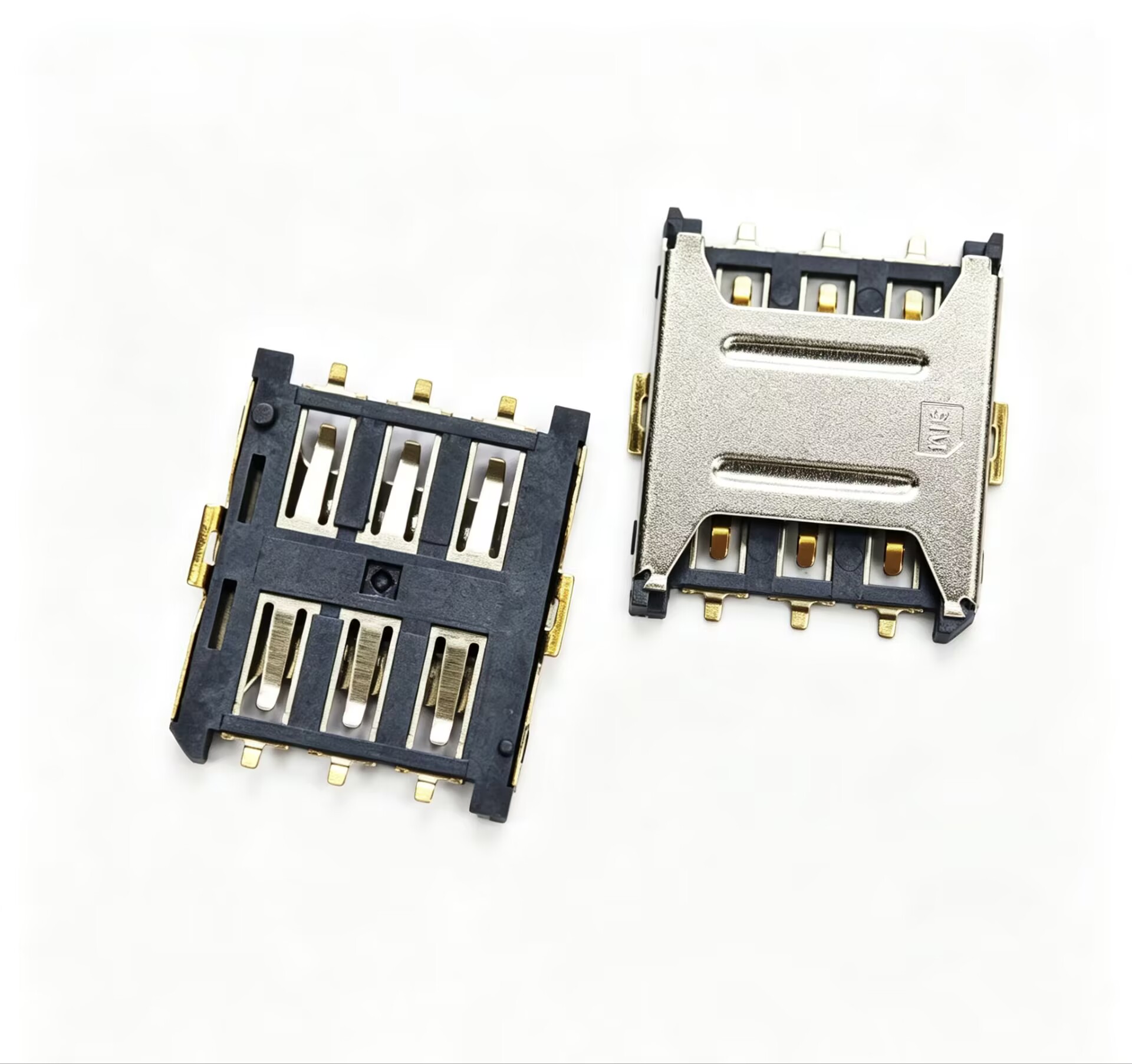

Nano SIM Socket with posts

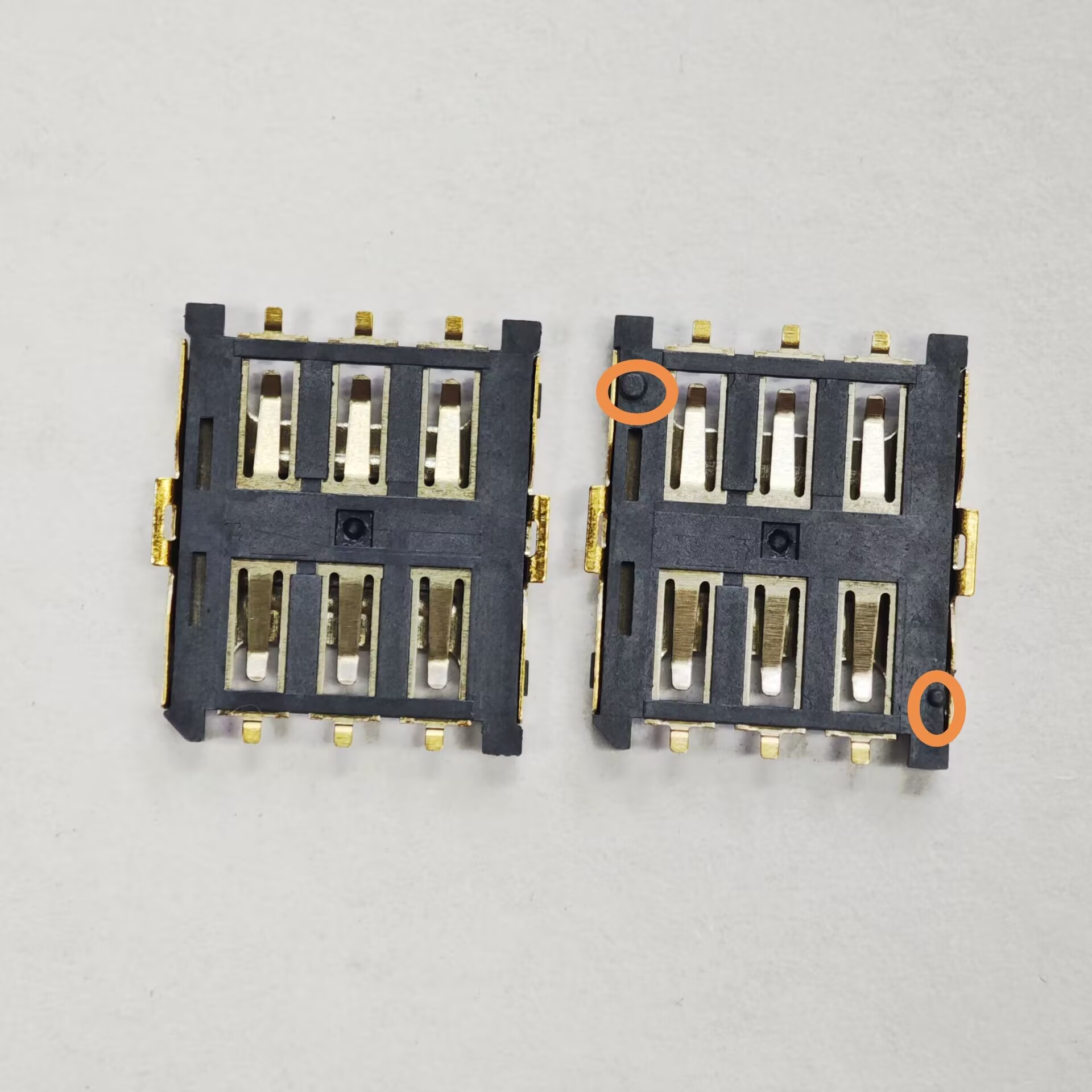

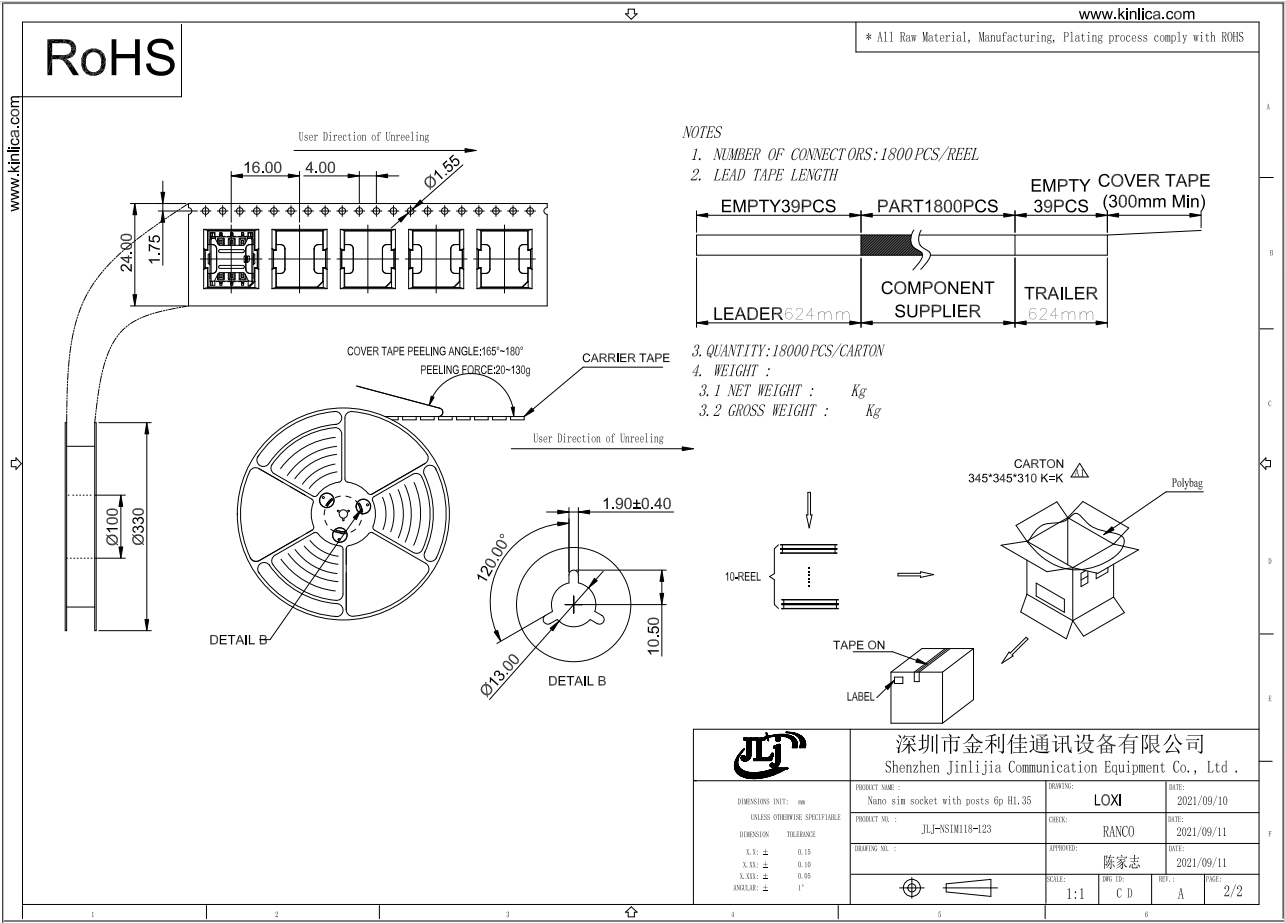

Pin Count: 6 contacts (standard GSM interface). Card Type: Nano SIM card (12.3 mm x 10.0mm). Mounting Type: Surface Mount Device (SMD/SMT). Min Pack: 1800PCS/reel. Configurations: Available in push-pull (push-in/pull-out) or hinged/flip-open metal lid variants, and can be provided with or without locating posts.

echnical parameters:
1. Rated current: 1.0A AC/DC
2. Rated voltage: 50V AC/DC
3. Operating temperature: -40°C ~ +85°C
4. Storage temperature: -40°C ~ +85°C
5. Contact Impedance: 100m ohms max.
6. Withstand voltage: 500V AC / 1 minute
7. Insulation resistance: 1000M ohms min./500VDC
8. Durability: 5000 times
9. Product temperature resistance: 260±5°C 10S
10. Flatness: 0.10mm MAX.
11. RoHS compliant
12. Stable and superior performance
