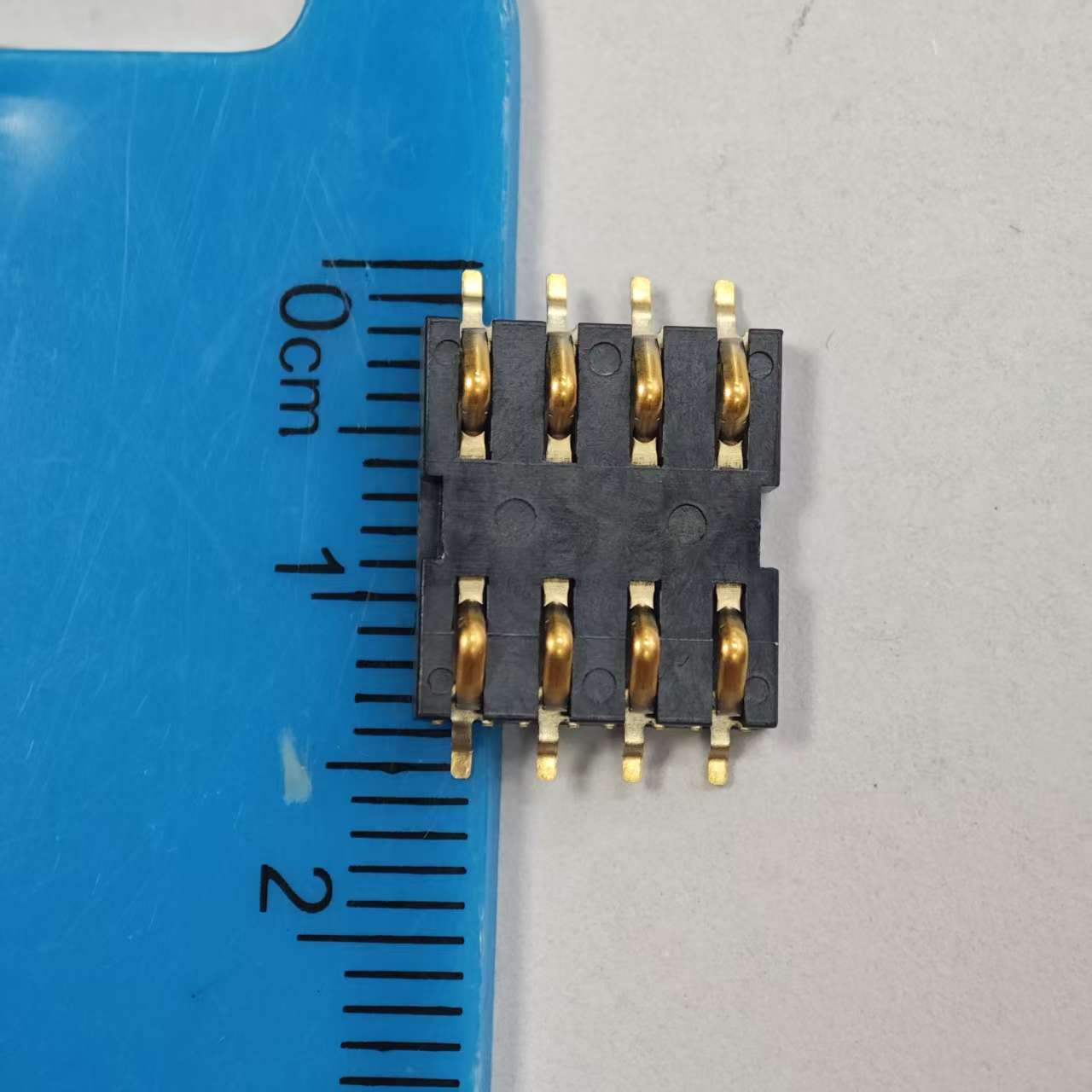

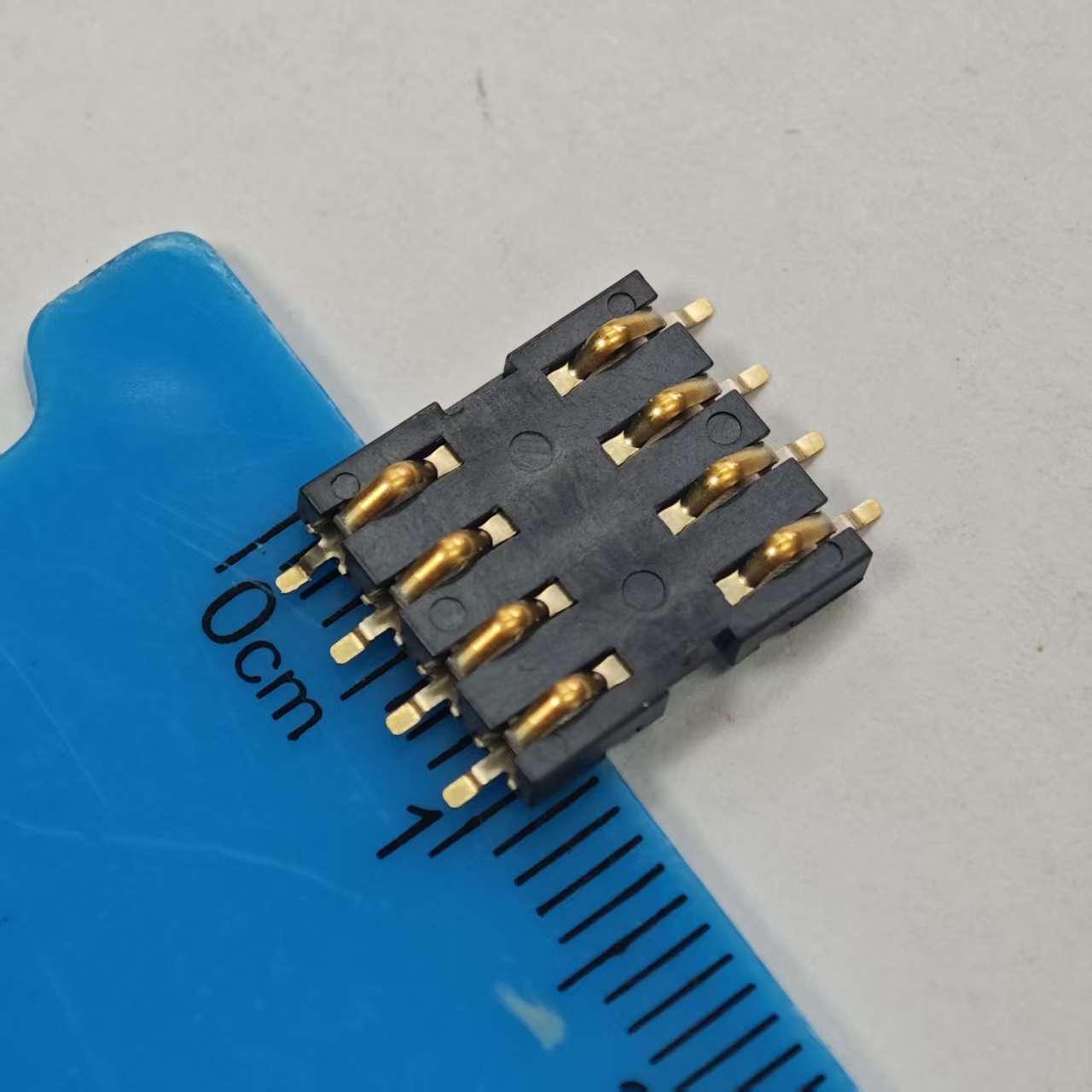

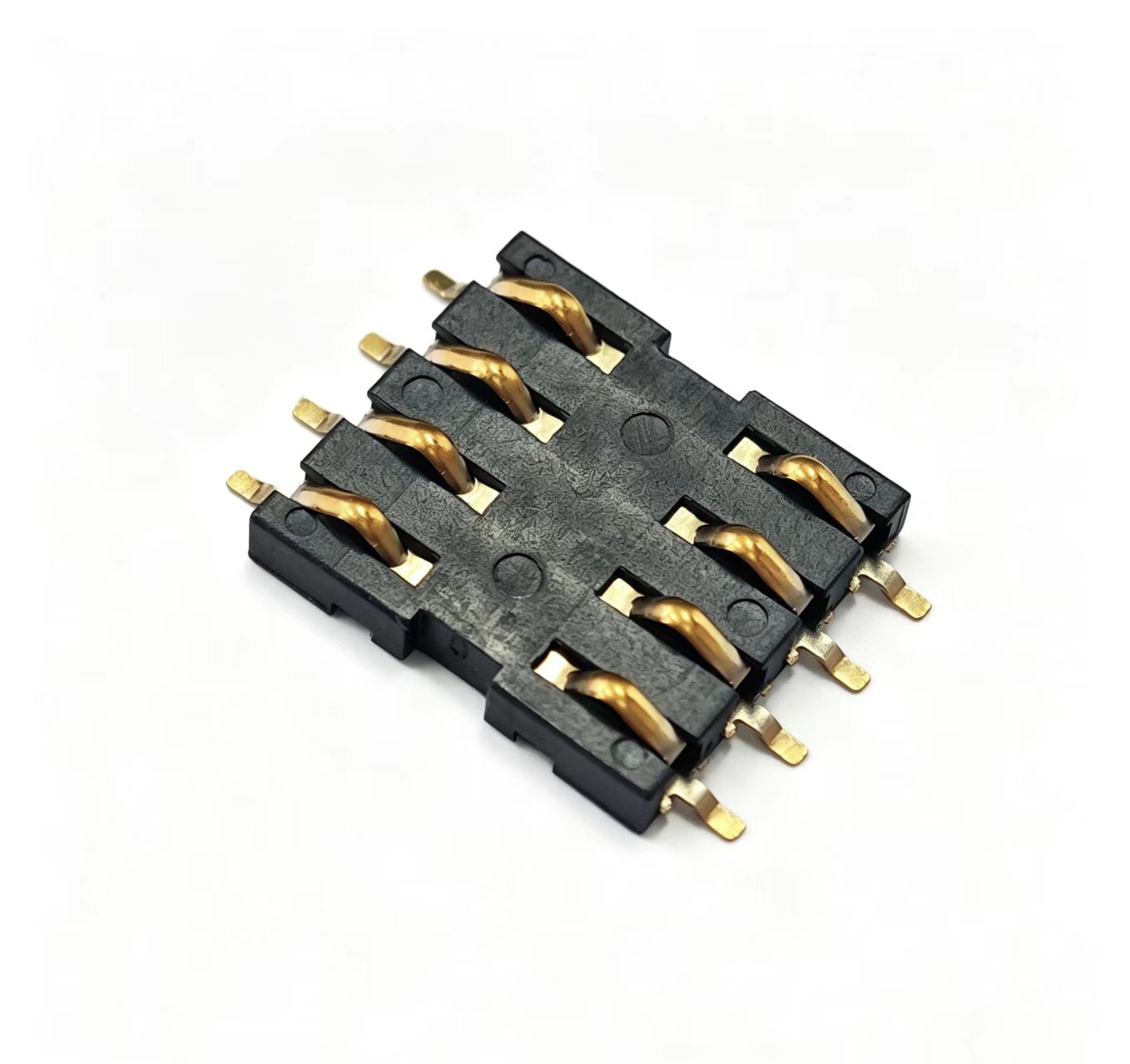

Product name:SIM card connector push pull type 8pin (1.8H) without post Part Number:JLJ-S1808P-7033 Specification:Plastic: black high temperature UL94V-0; terminal: copper alloy; shell: stainless steel 800PCS/REEL
TECHNICAL CHARACTERISTICS
1.General Characteristics
Dimensions:11.80L X10.62WXH mm
H=1.80 mm
Durability: 5,000 cycles min.
2.Electrical Characteristics
Contact resistance: 50mΩ typical,100mΩ max
Insulation resistance: >1000MΩ/500V DC
3.Solderability
Vaporphase: 215℃,30sec.Max
IR reflow: 250℃,5sec.Max
Manual soldering: 370℃,3sec.Max
4.Environmental Characteristics
Operating temperature: −40℃~+85℃
Operating humidity: 10%~+95%RH

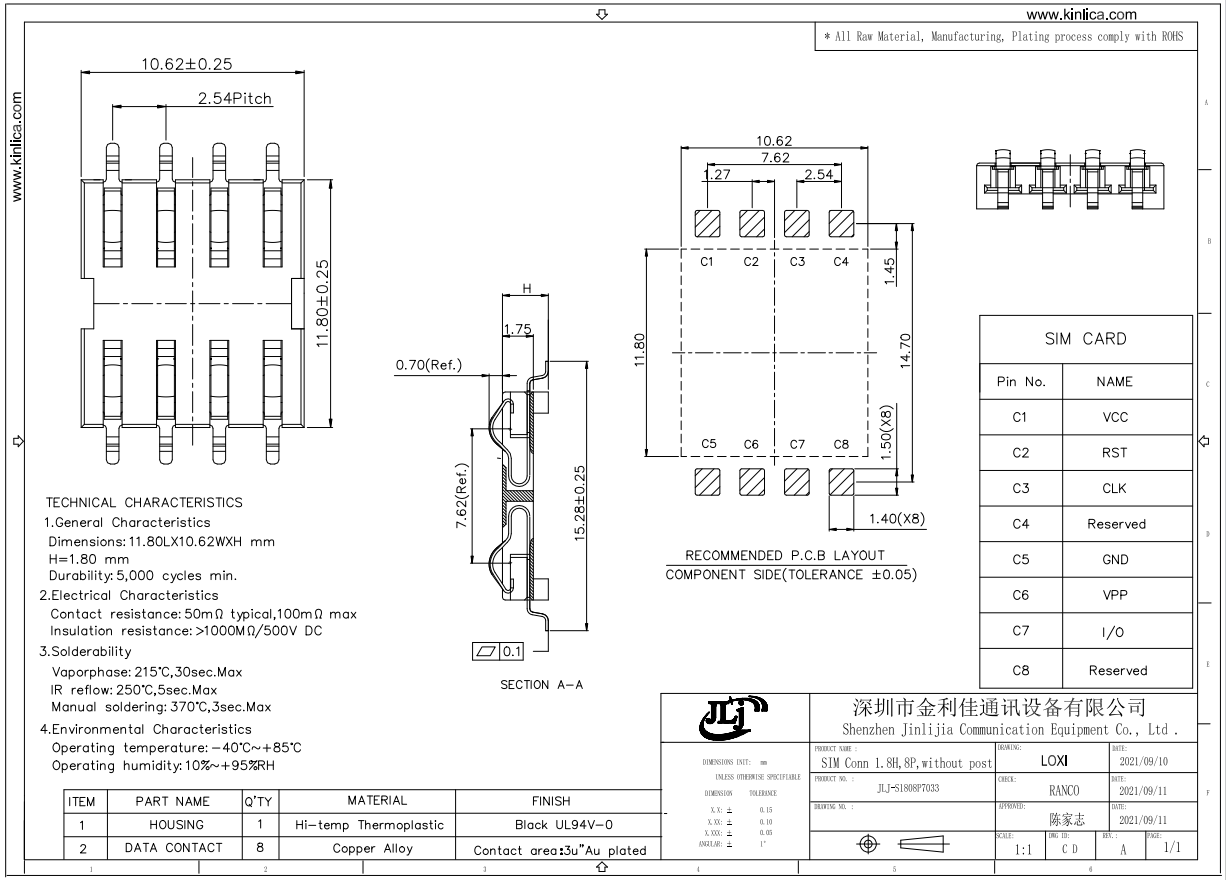

Drawing:
